Viking Access Gate Openers Replacement Accessory Kit Slider - VA-ACKSLIDE

Details

Viking Access Gate Openers Replacement Accessory Kit Slider - VA-ACKSLIDE

This accessory slide kit is created for Viking Access K-2 slide gate openers. This kit includes official replacement parts.

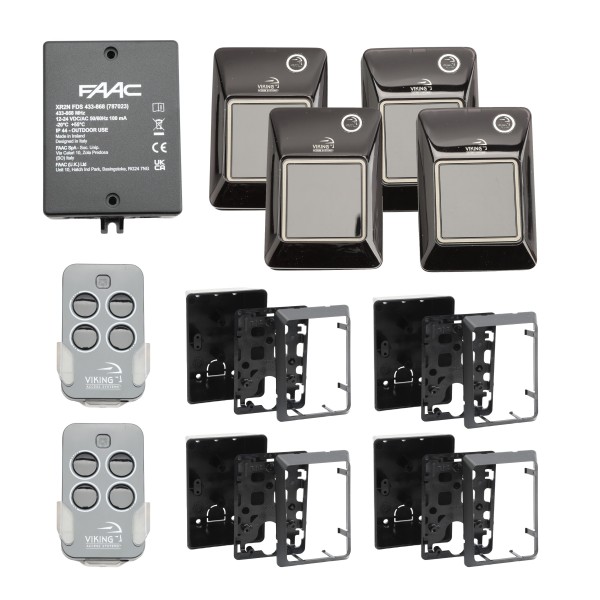

Kit Includes

• (2) Sets of Photocells (FA-XP30-10K)
• (4) Photocell Conduit Adapters (FA-XP30AC)
• (2) Two-Channel Transmitters (FA-XT4RC)
• (1) Receiver (FA-XR2C)

Photocell (Photo Eye) Specifications

• Max Range: 100 ft.
• Voltage Supply: 12-24 VAC / VDC
• Operating Current (Transmitter): 20mA
• Operating Current (Receiver): 30mA
• Technology: Modulated Infrared Light - 4 Separate Channels
• Ambient Operating Temperature: 4°F to 131°F (-20 °C to +55°C)
• LED Beam Angle: ±7° @ 65 ft (20m) ±13.5° @ 16 ft (5 m)
• Output: NO/NC Relay 1A - 120V
• Protection Class: IP54
• Mounting: Wall, Optional Conduit and Column Adapters

Quickstart Guide

Specification Sheet

Photocell Adapter Specifications

• Operating Temperature: -4 Degrees F to 131 Degrees F
• Safety Rating: Conforms to UL 325
• Manufacturer Warranty: 1 Year

Transmitter Specifications

• Channels: 4
• Operating Frequency: 433 Mhz
• Radio Frequency Power: 10 mW
• Power Supply: Alkaline Battery Type 23A

Quickstart Guide

Receiver Specifications

• 433 Mhz

Quickstart Guide
