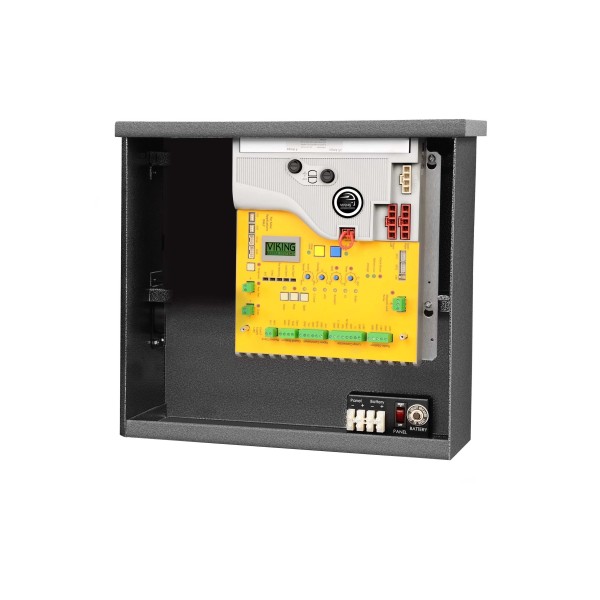

Viking Access Gate Openers Replacement G5 -Solar ECU Single- VA-ECUSNXSLR2
Details
Viking Access Gate Openers Replacement G5 -Solar ECU Single- VA-ECUSNXSLR2
Key Features:
- UL 325 compliant
- Two Monitoring Inputs With Up To 4 Devices Per Input
- On board display
- Built-in voltmeter
- Lightning strike protection
- 12V Solar panel input
- 12V Battery charger
- Solar panel switch
- Battery switch
- Big box can hold a 35 Ah battery
- Aluminum construction
- Powder coated
- Lockable door
- Rainproof enclosure
- Pre-punched holes for conduits
- Sleep mode
- Adaptive motor control
- Adjustable speed control
- Anti-tailgating feature
- Built-in 3A solar charge regulator
Technical Specifications:
- Compatible Models: G5 Solar
- Operating Voltage: 24VDC
- Main Power Fuse: 4A Timed
- Power Source: 12VDC
- Accessory Power: 24VDC - 750mA
- Power Consumption - Sleep: 19mA
- Motor Current (Typical): 2.0A
- Operating Temperature: -4°F (-20°C) to 160°F (71°C)
- Dimensions Standard Box (L x D x H): 16.75 x 6.125 x 15.625 included
SKU | VA-ECUSNXSLR2 |
---|---|
Compatible Operators | K-2, Slide, Single |
Logo Color | Black Viking Logo |
Solar Powered | Yes |
UL325 Compliance | PRE UL325 (2013-2016) |
Manufacturer | Viking Access Systems |
Input Voltage | 24 DC |
