Viking Access G-5 Double Leaf Swing Gate Opener Kit - VA-G5DLK
Details
Viking Access G-5 Double Leaf Swing Gate Opener Kit - VA-G5DLK
The G-5 Double Leaf Swing kit is one of the top linear actuators for swing gate openers. Because of its heavy-duty design, it can hold a gate weight of up to 2,000 pounds and has a 100% duty cycle operation. The VA-G5 is powered by the newly improved V-Flex control board, features an LCD display diagnostic, speed control dial, two 120VAC outlets, each rated for up to 3Amps, and an On/Off AC power control switch with a built-in overcurrent protection breaker. The new and improved ECU is also configurable for 220 VAC input power. This actuator is solar-friendly and can be powered with low-voltage wiring. Versatile and revolutionary technology, the G-5 double swing leaf kit has everything you need to make your gate automatic.
Kit Includes:
- (2) G5 Swing Gate Openers
- ECU Dual Control Unit
- 433 MHz Receiver (FA-XR2C)
- (2) 433 MHz Transmitter (FA-XT4RC)
- Photocell 10K Resistor (FA-XP30-10K)
- (2) Photocell Adapter (FA-XP30AC)
- Junction Box (DJBK)
- 40 Ft. 6 Conductor Cable, 16 AWG Shielded
Key Features:

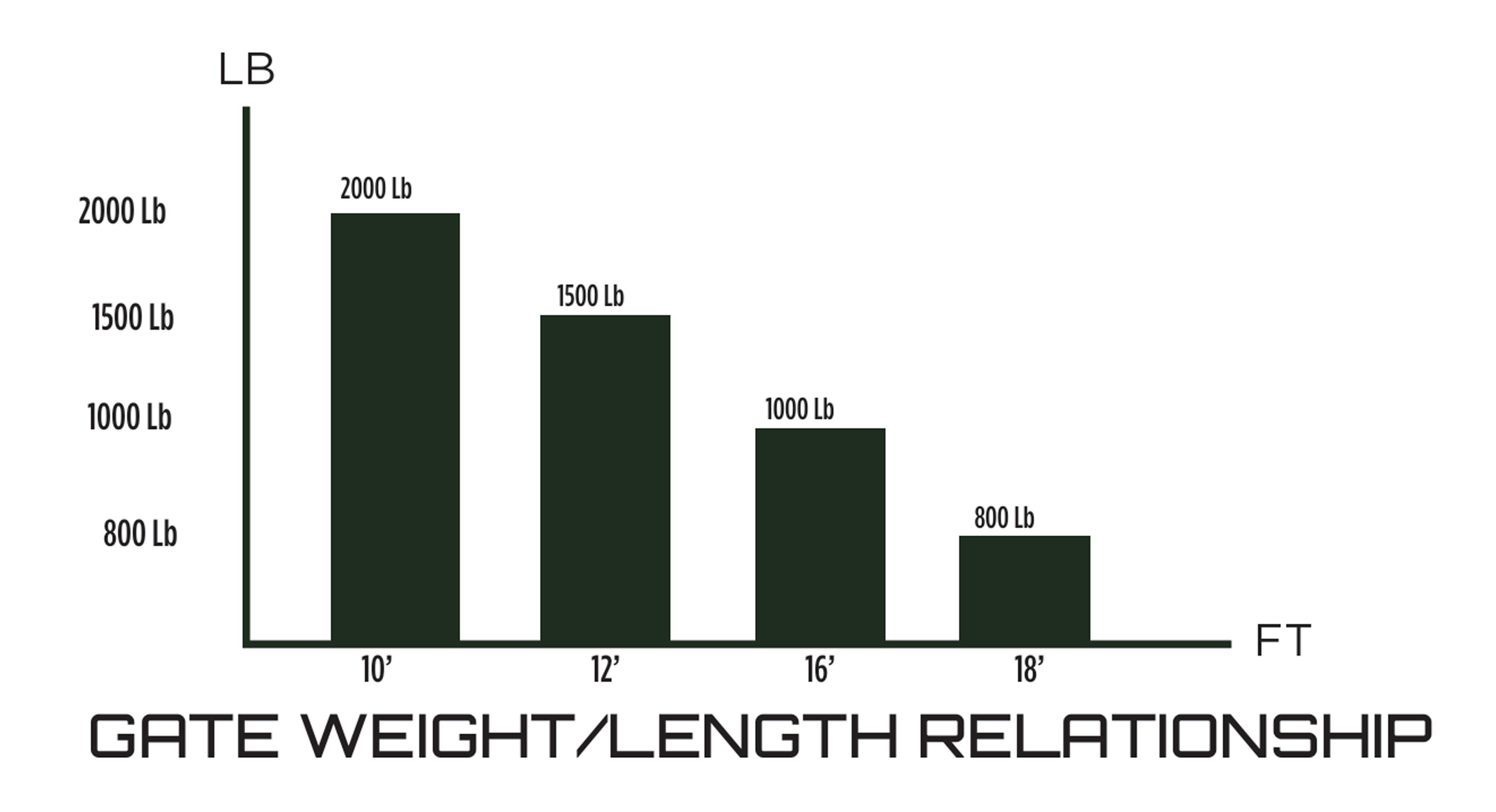

- 2,000 Lb To 10 Feet Leaf Capacity
- Opens Gates In 15 To 18 Seconds
- Operating Temps: -20 Degree To 160 Degrees F
- 100% Continuous Duty Motor
- Heavy-Duty Protected Chassis
- Lighting Strike Protection
V-Flex ECU Features
- LCD Display Diagnostics
- Speed Control Dial
- (2) 120VAC Outlets (rated for up to 3Amps each)
- On/Off AC Power Switch
- Built-In Overcurrent Protection Breaker
- Configurable for 220 VAC Input Power
| SKU | VA-G5DLK |
|---|---|
| Model | G-5 |
| Kit Includes | Swing Gate Operator, Dual ECU, Photo Eye, Transmitter, Receiver |
| Actuator Voltage | 24 DC |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 2000 lbs. |
| Input Voltage | 24 DC, 24 AC, 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Operator Type | Dual Gate |
| Usage Class | I, II, III, IV |
| Manufacturer | Viking Access Systems |
