Viking Access Gate Openers Replacement ECU Electronic Control Unit Double (For X-390 and I-770) *Motor Connection Required - VA-ECUD1

Details

Viking Access Gate Openers Replacement ECU Electronic Control Unit Double (For X-390 and I-770) *Motor Connection Required - VA-ECUD1

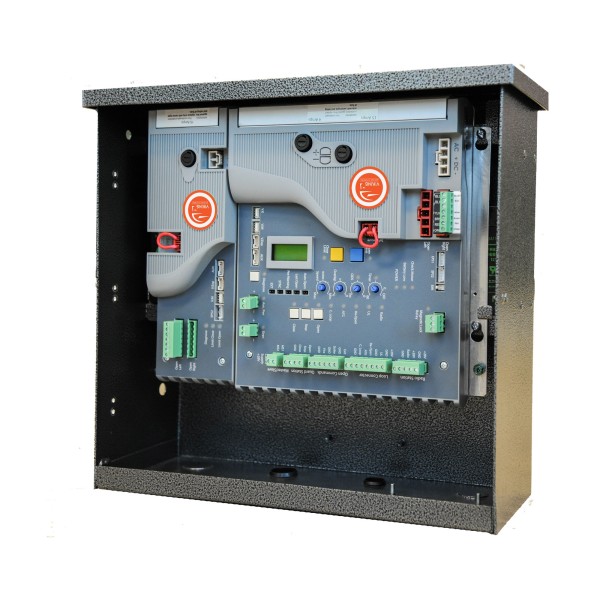

Viking Access ECU Electronic Control Unit Double (For X-390 and I-770) - VA-ECUD1

This product has been discontinued and replaced by Viking Access VA-ECUD2.

Key Features:

• UL 325 compliant
• Two monitoring inputs w/up to 4 devices per input
• Onboard display
• Built-in voltmeter
• Lightning strike protection
• Aluminum construction
• 120V, 220V, or low voltage or solar power option
• Powder coated
• Lockable door
• Rainproof enclosure
• Pre-punched holes for conduits
• 120V receptacle (Big box option)
• Adaptive motor control
• Adjustable speed control
• Anti-tailgating feature
• True battery back-up
• Built-in thermostat-controlled heater
• Two 4A batteries included

Technical Specifications:

• Compatible Models: X390, I770
• Duty Cycle: 100%
• Operating Voltage: 24 VDC
• Voltage Current Specs: 120 VAC - 1.5A or 240 VAC - 1.0A (Each Motor)
• Main Power Frequency: 50 Hz / 60 Hz
• Main Power Fuse: 4A Timed
• Alternative Power Source: 24 VAC / VDC (60VA) or Solar
• Accessory Power: 24 VDC - 750 mA
• Power Consumption (Sleep): 28 mA
• Motor Current (Typical): 2.0A
• Operating Temperature: -20°F to 131°F
• Dimensions: 16.75" L x 6.125" D x 15.625" H
