Viking Access I-770 Underground Swing Gate Opener Kit (Stainless Steel Chassis) - VA-I770SLK-SS
The I-770 Underground Swing Gate Operator is a nearly invisible solution to home and property owners that want to minimize the visibility of their gate opener. It is capable of handling gates up to 12 ft. long and weighing up to 650 lbs., and features top-of-the-line safety standards, and is ETL Listed, UL325, and UL991-Compliant. The direct-drive DC gear-head unit is IP67 water-resistant and has a convenient manual release mechanism. The I-770 comes standard with stainless steel chassis and a battery backup capable of 250 continuous cycles. The I-770 is powered by the newly improved V-Flex control board, features an LCD screen, two 120VAC outlets, each rated for up to 3Amps, and an On/Off AC power control switch with a built-in overcurrent protection breaker. The new and improved ECU is also configurable for 220 VAC input power. This intuitive operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations.

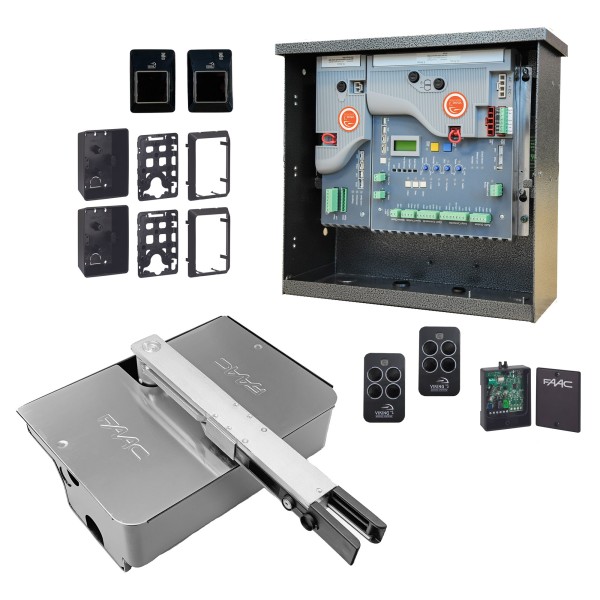

Kit Includes:
- (1) VA-I770S Stainless Steel In-Ground Swing Gate Operator
- (1) VA-ECUS1 Electronic Control Unit - Single Gate
- (1) FA-XR2C 433 Mhz Receiver
- (2) FA-XT4RC 433 Mhz Transmitters
- (1) FA-XP30-10K Photocell 10K Resistor
- (2) FA-XP30AC Photocell Adapter
Key Features:
- Adaptive motor control
- Built-in thermostat controlled heater
- Built-in voltmeter
- Lightning strike protection
- Multiple power options
- On-board display
- True battery back-up
- UL325 compliant
- Two monitoring inputs With up to 4 devices per input
- Adjustable speed control
- Anti-tailgating feature
- Fail secure mode
- Manual release - mechanical
- Multiple power outage options
- Positive stop limits
V-Flex ECU Features
- LCD Display Diagnostics
- Speed Control Dial
- (2) 120VAC Outlets (rated for up to 3Amps each)
- On/Off AC Power Switch
- Built-In Overcurrent Protection Breaker
- Configurable for 220 VAC Input Power
Technical Specifications:
- Gate Type: Swinging Gate
- Max Gate Weight: 650 lbs.
- Max Gate Length: 12 ft.
- Battery Backup Capacity: 400 Full Continuous Cycles
- Max Duty Cycle: 100% Continuous Cycle
- Voltage Current: 120VAC - 1.5A or 240VAC - 1.0A (each motor)
- Main Power Frequency: 50Hz - 60Hz
- Main Power Fuse: 4A Timed
- Alternate Power Source: 24 VAC / VDC (60VA) Or Solar
- Accessory Power: 24 VDC - 750mA
- Opening Angle: 110 Degree
- Main Power Source: 120/240 VAC Single Phase
- Operational Voltage: 24 VDC
- Operating Speed: 13 - 15 Inches Per Second / 90 Degree Opening
- Usage Class: Class I, II, III, IV
- Operating Temperature: -20 Degrees F up to +160 Degrees F
| SKU | VA-I770SLK-SS |
|---|---|
| Model | I-770 |
| Kit Includes | Swing Gate Operator, Single ECU, Photo Eye, Transmitter, Receiver |
| Actuator Voltage | 24 DC |
| Max Gate Length | 12 ft. |
| Max Gate Weight | 650 lbs. |
| Input Voltage | 24 AC, 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Operator Type | Single Gate |
| Operating Speed | 13 - 15 in. Per 90° Opening |
| Usage Class | I, II, III, IV |
| Manufacturer | Viking Access Systems |
| Warranty | 3-Year |
