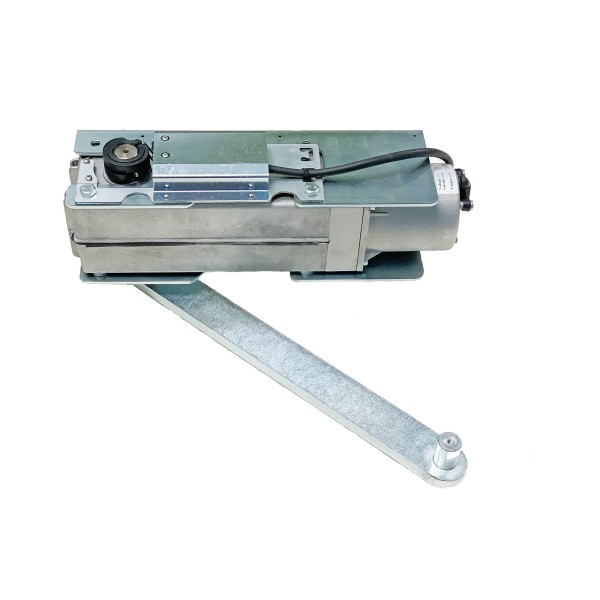

Viking Access X-390 Swing Gate Opener Drive Unit (w/ Steel Arm, Limit Switches, and Positive Stop) - VA-X390
Details
Viking Access X-390 Swing Gate Opener Drive Unit (w/ Steel Arm, Limit Switches, and Positive Stop) - VA-X390
The X-390 Swing Gate Operator, by Viking Access Systems, is an automatic swing gate opener that is designed for gates weighing up to 600 lbs. and up to 14 ft. wide. It features an operating speed of 13-16 seconds per 90 degrees and meets the most current UL325 Class I, II, III, IV safety standards. This makes the X-390 optimal for a wide range of uses such as homes, apartments, parking garages, hotels, and industrial factories.
The X-390 Swing Gate Operator comes with a V-Flex control board that includes an LCD display. It is solar efficient and is ready to be wired with low voltage wiring. The operator can be installed on a column, making it more versatile for homeowners. Other features include the integrated heater, battery backup, and compatibility with Viking Wireless Products.
Viking Compatible Accessories:
- Plug and Play connection for compatible Viking wireless products
- Viking Konnect- Wireless Kit provides wireless communication when the application requires two single ECU's
- Viking Monitor- Grants remote access to control board settings, controls, gate status, diagnostics, and error notifications with any compatible computer or hand-held device
Key Features:
- Gate Type: Swing Gate
- Max Gate Length: 14 ft.
- Max Gate Weight: 600 lbs.
- Normal Operating Speed: 10 - 13 Seconds Per 90°
- Battery Backup: 400 Continuous Cycles
- Manufacturer Warranty: 3 Years
SKU | VA-X390 |
---|---|
Model | X-390 |
Max Gate Length | 14 ft. |
Max Gate Weight | 600 lbs. |
Input Voltage | 24 DC, 24 AC, 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
Operator Type | Single Gate |
Operating Speed | 10 - 13 in. Per 90° Opening |
Usage Class | I, II, III, IV |
Manufacturer | Viking Access Systems |
Warranty | 3-Year |
