Viking X-390 Slim Articulated Arm Dual Swing Gate Opener Kit (14 ft / 600 lbs Maximum) - VA-X390DLK
Details
Viking X-390 Slim Articulated Arm Dual Swing Gate Opener Kit (14 ft / 600 lbs Maximum) - VA-X390DLK
The X-390 Swing Gate Operator, by Viking Access Systems, is an automatic swing gate opener that is designed for gates weighing up to 600 lbs. and up to 14 ft. wide. It features an operating speed of 13-16 seconds per 90 degrees and meets the most current UL325 Class I, II, III, IV safety standards. This makes the X-390 optimal for a wide range of uses such as homes, apartments, parking garages, hotels, and industrial factories. The X-390 Swing Gate Operator comes with the newly improved V-Flex control board, featuring an LCD screen, two 120VAC outlets, each rated for up to 3Amps, and an On/Off AC power control switch with a built-in overcurrent protection breaker. The new and improved ECU is also configurable for 220 VAC input power. It is solar-efficient and is ready to be wired with low-voltage wiring. The operator can be installed on a column, making it more versatile for homeowners. Other features include the integrated heater, battery backup, and compatibility with Viking Wireless Products.
Viking Compatible Accessories:
- Viking Access Monitor
- Viking Access Car Access Kit
- Viking Access Swing Gate OpenerAccessory Kit
- Viking Access Wireless Digital Keypad with Receiver

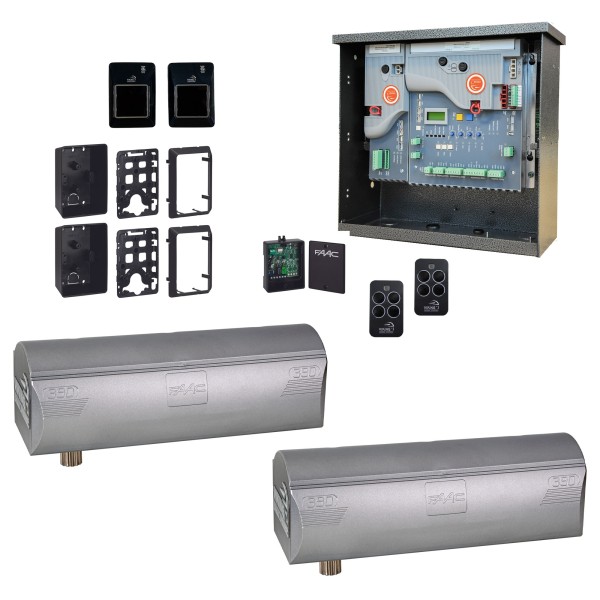

Kit Includes:
- (2) VA-X390 X-390 Swing Gate Operator
- (1) VA-ECUD1 ECU Dual
- (1) FA-XR2C433 Mhz Receiver
- (2) FA-XT4RC433 Mhz RC Transmitter
- (1) FA-XP30-10K Photocell 10K Resistor
- (2) FA-XP30AC Photocell Adapter
- (1) DJBK Junction Box
- (40) VA-CB16 6 Conductor Cable, 16 AWG Shielded
Key Features:
- Gate Type: Dual Swing Gate
- Max Gate Length: 14 ft. Per Arn
- Max Gate Weight: 600 lbs. Per Arm
- Normal Operating Speed: 10 - 13 Seconds Per 90 Degree
- Monitoring Inputs: 2 With Up To 4 Devices Per Input
- Battery Backup: 400 Continuous Cycles
- Manufacturer Warranty: 3 Years
V-Flex ECU Features
- LCD Display Diagnostics
- Speed Control Dial
- (2) 120VAC Outlets (rated for up to 3Amps each)
- On/Off AC Power Switch
- Built-In Overcurrent Protection Breaker
- Configurable for 220 VAC Input Power
X-390 Installation:
| SKU | VA-X390DLK |
|---|---|
| Model | X-390 |
| Kit Includes | Swing Gate Operator, Dual ECU, Photo Eye, Transmitter, Receiver |
| Actuator Voltage | 24 DC |
| Max Gate Length | 14 ft. |
| Max Gate Weight | 600 lbs. |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
24 DC, 24 AC, 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Operator Type | Dual Gate |
| Opener Type | Swing Gate Opener |
| Operating Speed | 10 - 13 in. Per 90° Opening |
| Usage Class | I, II, III, IV |
| Manufacturer | Viking Access Systems |
| Warranty | 3 Years |
| Cut Sheet | Download PDF file |
| Installation Guide | Download PDF file |
| Warranty Information | Download PDF file |
