Viking X-9 1/2 HP Column Mount Solar Swing Gate Operator - VA-X9

Details

Viking X-9 1/2 HP Column Mount Solar Swing Gate Operator - VA-X9

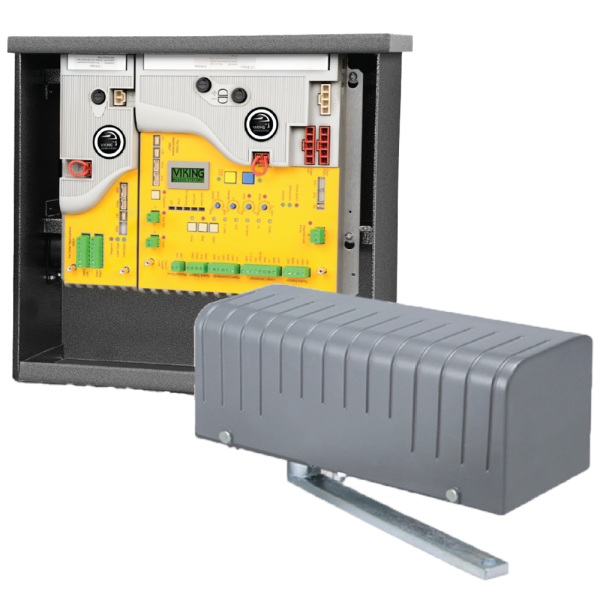

The Viking X-9 Column Mount Solar Swing Gate Operator (VA-X9) is engineered for Class I residential gates and delivers powerful performance with its efficient 1/2 HP electromechanical motor. Supporting gates up to 600 lbs and 14 feet long, it features soft start/stop motion, real-time diagnostic LCD display, and advanced solar management technology for extended daily cycles. The unit is designed to be mounted directly onto a column or post and can operate in extreme conditions from -4 F to 160 F. Built-in surge protection and corrosion-resistant materials ensure long-term durability even in harsh outdoor environments.

Features:

• Operates gates up to 14 feet long and 600 lbs
• Solar-compatible with built-in charger and real-time diagnostics display
• Soft start and stop for smoother gate motion
• Surge protection rated for 20,000 volts/10,000 amps
• Sleep mode minimizes power draw from non-essential accessories

Specifications:

• Power Supply: 12VDC (Solar-ready)
• Motor Power: 1/2 HP
• Gate Capacity: 600 lbs / 14 ft max
• Operating Temperature: -4 Degrees F to 160 Degrees F
• Operating Speed: 10–13 seconds per 90 Degrees
• Mounting Style: Column mount (optional post stand available)
• Compatibility: Class I residential swing gates
• Warranty: 5-year residential warranty
• Battery & Solar Panel: Not included
