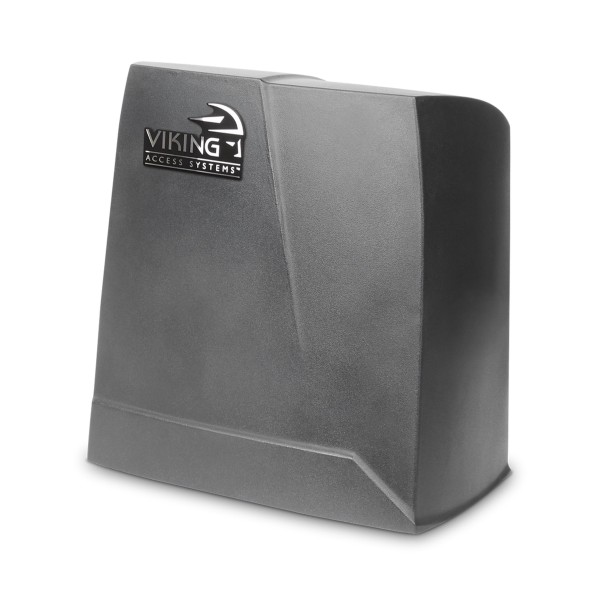

Viking K2 Slide Gate Operator Solar Residential w/ Smart Positioning System - VA-K2SPSSLR

Details

Viking K2 Slide Gate Operator Solar Residential w/ Smart Positioning System - VA-K2SPSSLR

The K2 Solar Residential Slide Gate Opener, by Viking Access Systems, is a fully solar-powered automatic sliding gate opener designed for use with gates weighing up to 700 lbs, and up to 30 ft. long at 100% duty cycle under extreme conditions. It features an operating speed of up to 12 inches per second and meets the most current UL325 Class I Residential Safety Standards, making it ideal for applications like homes, condominiums, or other high-traffic residential installations.

It comes with a built-in V-Flex Control Board with LCD, on-board diagnostics, and an easy-to-use push-button digital limit setup. Additional features include surge protection, sleep mode, large area for battery installation, and 1/4" galvanized powder-coated cover is designed uniquely for Viking Gate Operators to achieve maximum durability.

Viking Solar Power Management System:

• Management System Maximizes The Number of Cycles Per Day
• Power Saving Technology Minimizes Current Draw
• Sleep Mode For Non-Essential Accessories Minimizes Current Draw on Stand-By
• Highly Advanced and Efficient Solar Charging System

Viking K2 Slide Gate Operator Solar Residential w/SPS

Please Note:For Slide Gate Operators, at least two monitored entrapment sensors are required to maintain UL 325 Safety Standards.

Key Features:

• Smart Positioning System
• Residential Class I Vehicular Slide Gate Opener
• Designed For Use With Gates Up To 700 lbs. or 30 ft.
• Compatible With Viking Wireless Products
• 12 VDC Solar Power Supply
• Soft Start/Soft Stop
• Lightning Protection Up To 20,000 Volts / 10,000 Amps
• Solar Smart Power Saving Technology Minimizes Current Draw While In Standby Mode
• Simple, Push-Button Digital Limits Setup With Adaptive Digital Limit Control
• Built-In V-Flex Control Board With LCD Voltages, Amps, Gate Status, and Full Diagnostics Display

Technical Specifications:

• Gate Type: Sliding Gate
• Max Gate Weight: 700 lbs.
• Max Gate Length: 30 ft.
• Max Duty Cycle: 100% Continuous Cycle
• Operating Speed: 12 Inches Per Second
• Usage Class: Class I Residential Only
• Operating Temperature: -4˚F up to +160˚F

*Battery and Solar Panel Sold Separately.
