Viking Access G-5 Solar Residential and Commercial Swing Gate Opener (Actuator Only) - VA-G5NXSLR
Details
Viking Access G-5 Solar Residential and Commercial Swing Gate Opener (Actuator Only) - VA-G5NXSLR

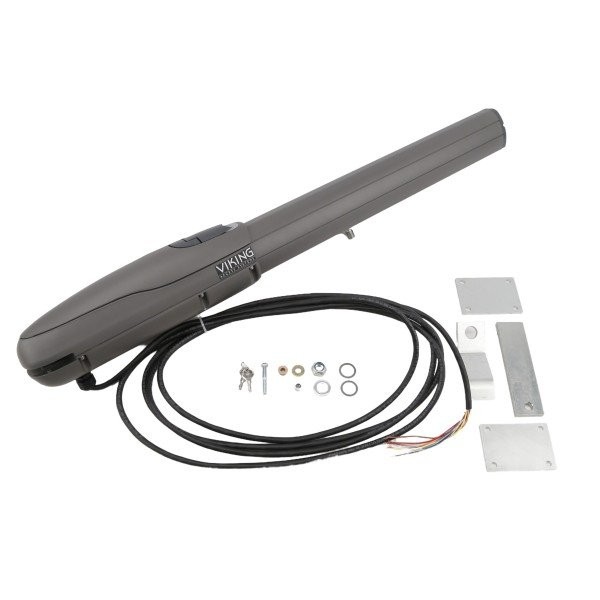

The G-5 Swing Gate Operator, by Viking Access Systems, is a linear arm actuator that can be used for gates weighing up to 1,000 lbs. and 16 ft. wide. It features an operating speed of 14-16 sec./90° and meets the most current UL35 Class I standards. This makes the G-5 optimal for a wide range of uses, such as homes, condominiums, or other high-traffic residential installations. It can be fitted with a single 12V battery and a 12V solar panel, making going green easy!
**Please Note: The G-5 Solar Swing Gate Opener Actuator Requires The Viking Access G5 - Solar ECU Single - VA-ECUSNXSLR In Order To Operate. Sold Separately.
Key Features:
- Power: Solar
- Gate Type: Swing Gate
- Max Gate Length: 16 ft.
- Max Gate Weight: 1000 lbs.
- Normal Operating Speed: 14 - 16 Seconds Per 90°
- Monitoring Inputs: 2 With Up To 4 Devices Per Input
- Manufacturer Warranty: 3 Years
- Adaptive motor control
- Built-in voltmeter
- Lightning strike protection
- Multiple power options
- On-board display
- UL325 compliant
- Adjustable speed control
- Two monitoring inputs With up to 4 devices per input
- Anti-tailgating feature
- Fail secure mode
- Fail safe mode
- Large box option
- Lockable cover
- Manual release - electronic
- Multiple power outage options
- Built-in 3A solar charger
Technical Specifications:
- Maximum Gate Weight: 1000 lbs.
- Maximum Gate Length: 16 ft.
- UL 325 Classification: Class I
- Operating Voltage: 24VDC
- Main Power Source: SOLAR 12VDC
- Accessory Power: 24VDC - 750mA
- Power Consumption - Sleep: 19mA
- Motor Current (Typical): 3.0A
- Operating Temperature: -4°F (-20°C) to 160°F (71°C)
- Opening Angle: 135°
- Gate Speed: 14-16 sec./90°
| SKU | VA-G5NXSLR |
|---|---|
| Model | G-5 |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1000 lbs. |
| Input Voltage | 24 DC |
| Operator Type | Single Gate |
| Operating Speed | 15 - 18 in. Per 90° Opening |
| Solar Powered | Yes |
| Usage Class | I |
| Manufacturer | Viking Access Systems |
| Warranty | 3-Year |
