Viking Access H-10 Residential and Commercial Slide Gate Opener (24V 1 HP Motor) Includes Battery Backup - VA-H10NX
Details
Viking Access H-10 Residential and Commercial Slide Gate Opener (24V 1 HP Motor) Includes Battery Backup - VA-H10NX

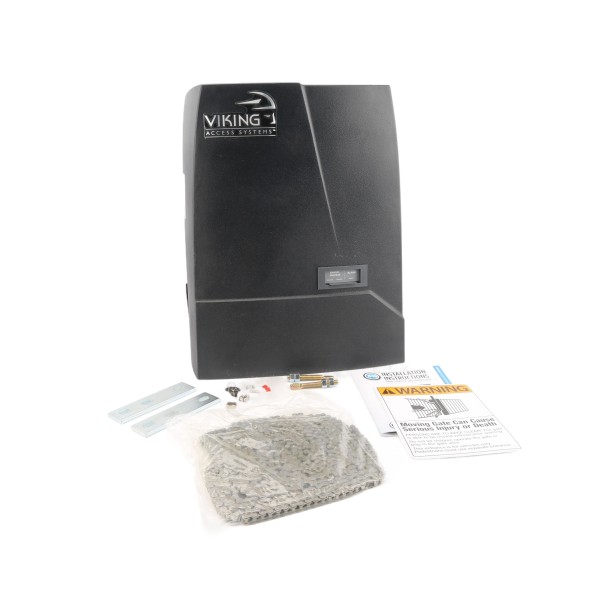

The H-10 Residential and Commercial Slide Gate Opener, by Viking Access Systems, is a sliding gate opener that is designed for use with a gate that weighs up to 2200 lbs. and up to 75 ft. wide. It features an operating speed of 12 inches per second and meets the UL325 Class I, II, III, IV Safety Standards. This makes it ideal for a wide range of uses such as homes, apartments, parking garages, hotels, and industrial buildings.
The H-10 Slide Gate Opener comes with a built-in V-Flex Control Board with LCD diagnostic display, removable power supply with a low voltage option, and is designed with integrated post-mount provisions, which allows the opener to be raised from the ground. Additional features include a fully integrated heater designed for all-weather use, a built-in battery backup system in case of power failure, and is compatible with Viking Wireless products.
Viking Compatible Accessories:
- Plug and Play connection for compatible Viking wireless products
- Viking Konnect- Wireless Kit provides wireless communication when the application requires two single ECU's
- Viking Monitor- Grants remote access to control board settings, controls, gate status, diagnostics, and error notifications with any compatible computer or hand-held device
Key Features:
- Residential Class I, II, III, IV Vehicular Swing Gate Opener
- Designed For Use With Gates Up To 2200 lbs. and 75 ft. Wide
- Compatible With Viking Wireless Products
- 24 VDC with 1HP
- Lightning Protection Up To 20,000 Volts / 10,000 Amps
- Built-In V-Flex Control Board With LCD Voltages, Settings, and Full Diagnostics Display
Technical Specifications:
- Gate Type: Slide Gate
- Max Gate Length: 75 ft.
- Max Gate Weight: 2200 lbs.
- Normal Operating Speed: 12 Inches Per Second
- Monitoring Inputs: 2 With Up To 4 Devices Per Input
- Battery Backup: 100 Continuous Cycles
- Manufacturer Warranty: 5 Years
| SKU | VA-H10NX |
|---|---|
| Model | H-10 |
| Max Gate Length | 75 ft. |
| Max Gate Weight | 2200 lbs. |
| Input Voltage | 24 DC, 24 AC, 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Operator Type | Single Gate |
| Operating Speed | 12 in. Per Second |
| Usage Class | I, II, III, IV |
| Manufacturer | Viking Access Systems |
| Warranty | 5-Year |
