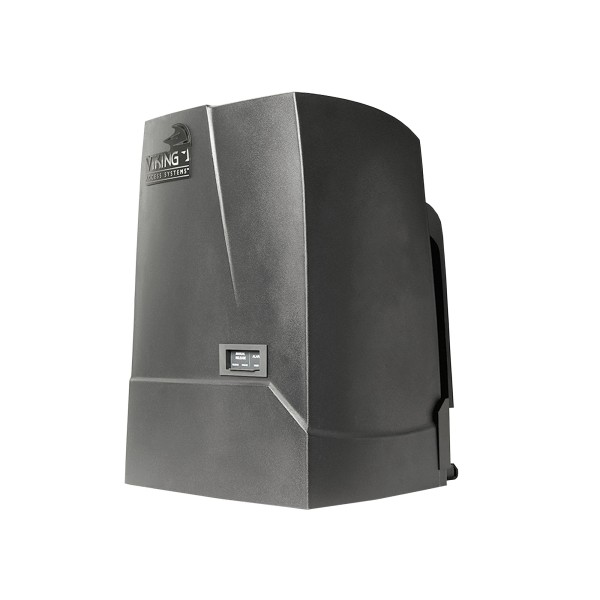

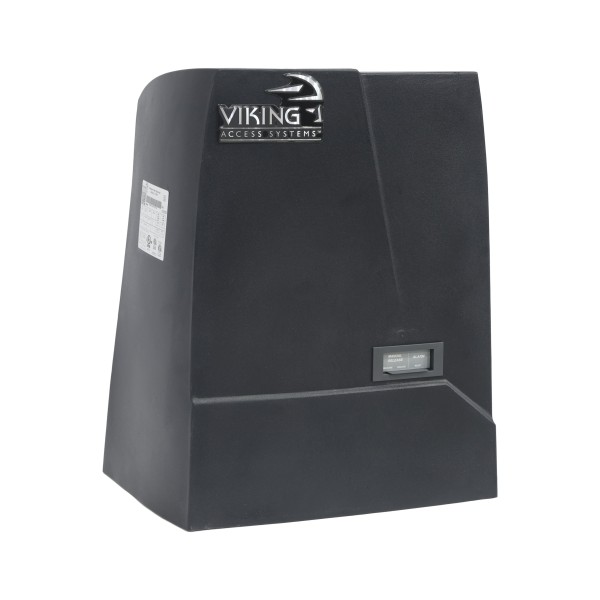

Viking Access L-3 Residential and Commercial Slide Gate Opener (24V 1/2 HP Motor) Includes Battery Backup - VA-L3SPS
Details
Viking Access L-3 Residential and Commercial Slide Gate Opener (24V 1/2 HP Motor) Includes Battery Backup - VA-L3SPS
The L3 Residential and Commercial Slide Gate Opener, by Viking Access Systems, is a gate operator designed for use with gates weighing up to 1600 lbs. and up to 60 ft. wide. It features an operating speed of up to 12 inches per second and meets the most current UL325 Class I, II, III, IV Safety Standards, making it ideal for homes, apartments, parking garages, hotels, and industrial buildings.
The L3 Slide Gate Opener comes with an on-board LCD screen that displays voltages, settings, and full error messages. It is designed with integrated post-mount provisions, which allows the opener to be raised from the ground. Additional features include a fully integrated heater designed for all-weather use, a built-in battery backup system in case of power failure, and is compatible with Viking Wireless products.
Viking Compatible Accessories:
- Plug and Play connection for compatible Viking wireless products
- Viking Konnect- Wireless Kit provides wireless communication when the application requires two single ECU's
- Viking Monitor- Grants remote access to control board settings, controls, gate status, diagnostics, and error notifications with any compatible computer or hand-held device
This Product Replaces Former Viking Access Part Number VA-L3NX
Please Note:For Slide Gate Operators, at least two monitored entrapment sensors are required to maintain UL 325 Safety Standards.
Key Features:
- Residential Class I, II, III, IV Vehicular Swing Gate Opener
- Designed For Use With Gates Up To 1600 lbs. and 60 ft. Wide
- Compatible With Viking Wireless Products
- 24 VDC 1/2HP
- Lightning Protection Up To 20,000 Volts / 10,000 Amps
- Built-In V-Flex Control Board With LCD Voltages, Settings, and Full Diagnostics Display
Technical Specifications:
- Gate Type: Slide Gate
- Max Gate Length: 60 ft.
- Max Gate Weight: 1600 lbs.
- Normal Operating Speed: 12 Inches Per Second
- Monitoring Inputs: 2 With Up To 4 Devices Per Input
- Battery Backup: 100 Continuous Cycles
- Manufacturer Warranty: 5 Years
| SKU | VA-L3SPS |
|---|---|
| Model | L-3 |
| Max Gate Length | 60 ft. |
| Max Gate Weight | 1600 lbs. |
| Input Voltage | 24 DC, 24 AC, 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Operator Type | Single Gate |
| Operating Speed | 12 in. Per Second |
| Usage Class | I, II, III, IV |
| Manufacturer | Viking Access Systems |
| Warranty | 5-Year |
