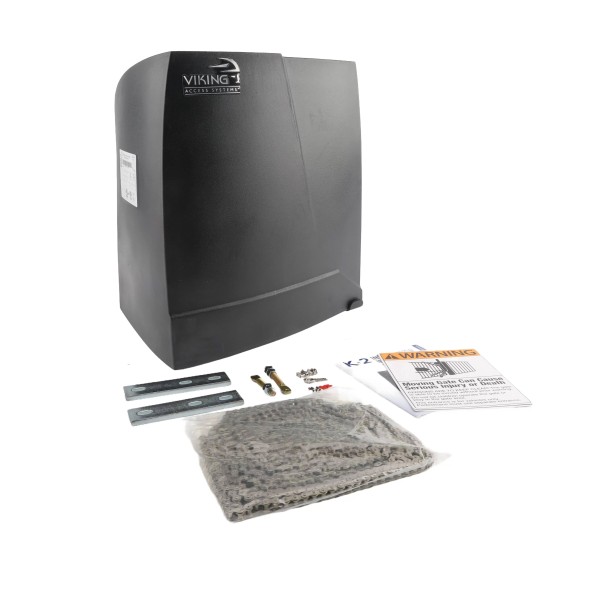

Viking K-2 Residential Slide Gate Opener with Battery Backup (Opener Only) (30 ft / 700 lbs Maximum) - VA-K2NX

The K2 Residential Slide Gate Opener, by Viking Access Systems, is a state-of-the-art automatic sliding gate opener designed for use with gates weighing up to 700 lbs, and up to 30 ft. long at 100% duty cycle under extreme conditions. It features an operating speed of up to 12 inches per second and meets the most current UL325 Class I Residential Safety Standards, making it ideal for applications like homes, condominiums, or other high-traffic residential installations.

It comes with a built-in V-Flex Control Board with LCD, on-board diagnostics, and an easy-to-use push-button digital limit setup. Additional features include a fully integrated heater designed for all-weather use, a built-in battery backup system in case of power failure, and a power supply with convenient fuse access and LED status indicators for voltage monitoring.

Compatible With Viking Wireless Products:

• Plug and Play For Viking Wireless Expansion Products
• Viking Konnect - Wireless Kit Provides Secure and Reliable Wireless Communication When The Application Requires Two Single ECUs
• Viking Monitor - Remote Access To Control Board Settings, Operator Diagnostics, Controls, Gate Status and Error Notifications, All From The Convenience of Any Computer or Compatible Smartphone

Battery Backup Included:

• Standard Battery Backup Provides 100 Continuous Cycles at 100% Duty Cycle
• With Viking's "True" Battery Backup System, Batteries Are Not Used During Normal Operations, Maximizing Battery Life

Please Note:For Slide Gate Operators, at least two monitored entrapment sensors are required to maintain UL 325 Safety Standards.

Key Features:

• Residential Class I Vehicular Slide Gate Opener
• Designed For Use With Gates Up To 700 lbs. or 30 ft.
• Compatible With Viking Wireless Products
• Removable Power Supply With Convenient Fuse Access
• Lightning Protection Up To 20,000 Volts / 10,000 Amps
• Fully Integrated Heater For Operation In Climates Down To -20°F
• Battery Backup Included - Provides 100 Continuous Cycles
• Solar Smart Power Saving Technology Minimizes Current Draw While In Standby Mode
• Simple, Push-Button Digital Limits Setup With Adaptive Digital Limit Control
• Built-In V-Flex Control Board With LCD Voltages, Amps, Gate Status, and Full Diagnostics Display

Technical Specifications:

• Gate Type: Sliding Gate
• Max Gate Weight: 700 lbs.
• Max Gate Length: 30 ft.
• Battery: 12 VDC x 2
• Battery Backup Capacity: 100 Full Continuous Cycles (700 lbs)
• Max Duty Cycle: 100% Continuous Cycle
• Main Power Source Options: 120/240 VAC Single Phase
• Operational Voltage: 24 VDC
• Operating Speed: 12 Inches Per Second
• Usage Class: Class I Residential Only
• Operating Temperature: -20˚F up to +160˚F
